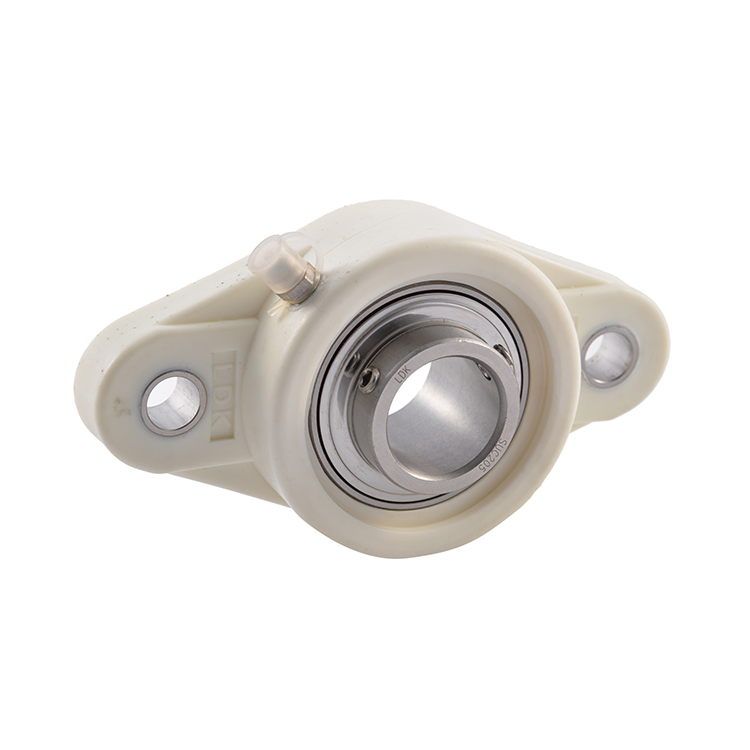

LDK Wash-down plastic stainless steel pillow block bearing with thermoplastic housing TP-SUCFL206-18
  • LDK Wash-down plastic stainless steel pillow block bearing with thermoplastic housing TP-SUCFL206-18
  • LDK Wash-down plastic stainless steel pillow block bearing with thermoplastic housing TP-SUCFL206-18
  • LDK Wash-down plastic stainless steel pillow block bearing with thermoplastic housing TP-SUCFL206-18
  • LDK Wash-down plastic stainless steel pillow block bearing with thermoplastic housing TP-SUCFL206-18

LDK Wash-down plastic stainless steel pillow block bearing with thermoplastic housing TP-SUCFL206-18

Bearing color: Siliver
Housing color: Black,white and green
Cover color: Black,white and green
Inner bore: 31.75
Overall length: 148
Bolt hole distance: 117
Center height: 19
Flange thickness: 14
Housing height: 31
Bolt hold diameter: 11
Overall width: 80
Bearing height: 38.1
Bearing center height: 15.9
Overall height: 41.2
Weight: 0.5kg
Certificate: IATF16949

Product Detail

1.Features

1)low vibration, low noise, smooth hand feeling

2)High accuracy

3)Can work in corrosion medium and in the high or low temperature



2.More details

1) Housings in SUS 304.
2) Inserts: Rings & balls in 440 or 420.

3)Slinger & frame: stainless steel 321.
4) Set-screw: stainless steel 304

5) Grease nipple:stainless steel 302



3.The main products of our factory

- Cast iron pillow blocks

- Thermoplastic bearing housings

- All stainless steel mounted units.

- Accu-Grip Concentric lock Bearing Units(New!)

- Spherical plain bearings

- Agriculture Bearings(Disc Harrow Bearings)

- Rod ends

  -- Carbon steel rod ends.

  -- Chrome alloy steel rod ends

  -- High strength alloy steel rod ends.

  -- All stainless steel rod ends.

  -- All plastic rod ends.

  -- Aluminum rod ends.

  -- Ball Joint rod ends

  -- Self lubricated plain bearings(GE..C,GE..UK).



4.Applications



1)Food & Beverage,

2)Pharmaceutical,

6)Chemical processing,


Unit No.Shaft DiaDimensions(mm)BoltHousing
dHJA2A1NBZA3size (mm)Weight (kg)
(in)(mm)
WP-SSBF204
208663.51522.5112536.349.5M100.36
WP-SSBF204-123/4
8663.51522.5112536.349.5M100.36
WP-SSBF205
25987016.822.5112736.349.5M100.38
WP-SSBF205-14 7/8
987016.822.5112736.349.5M100.38
WP-SSBF205-1515/16
987016.822.5112736.349.5M100.38
WP-SSBF205-161
987016.822.5112736.349.5M100.38
WP-SSBF206
3011083202611304155M100.56
WP-SSBF206-171-1/16
11083202611304155M100.56
WP-SSBF206-181-1/8
11083202611304155M100.56
WP-SSBF206-191-3/16
11083202611304155M100.56
WP-SSBF206-201-1/4
11083202611304155M100.56
WP-SSBF207
351209219.52611324559M100.77
WP-SSBF207-201-1/4
1209219.52611324559M100.77
WP-SSBF207-211-15/16
1209219.52611324559M100.77
WP-SSBF207-221-5/8
1209219.52611324559M100.77
WP-SSBF207-231-7/16
1209219.52611324559M100.77
WP-SSBF208
401311022230113447.565.5M100.99
WP-SSBF208-241-1/2
1311022230113447.565.5M100.99
WP-SSBF208-251-9/16
1311022230113447.565.5M100.99

WP-SSBF208 小图.jpg
